Part Number: 40HG6XP
/
Vendor ID Number: 4746
/
Custom:
![1" RND TRMLSS DWNLT 25° 540LM 27K](/vendors/4746/large/e1l61fxxwel01sfr3d.1.jpg "1" RND TRMLSS DWNLT 25° 540LM 27K")

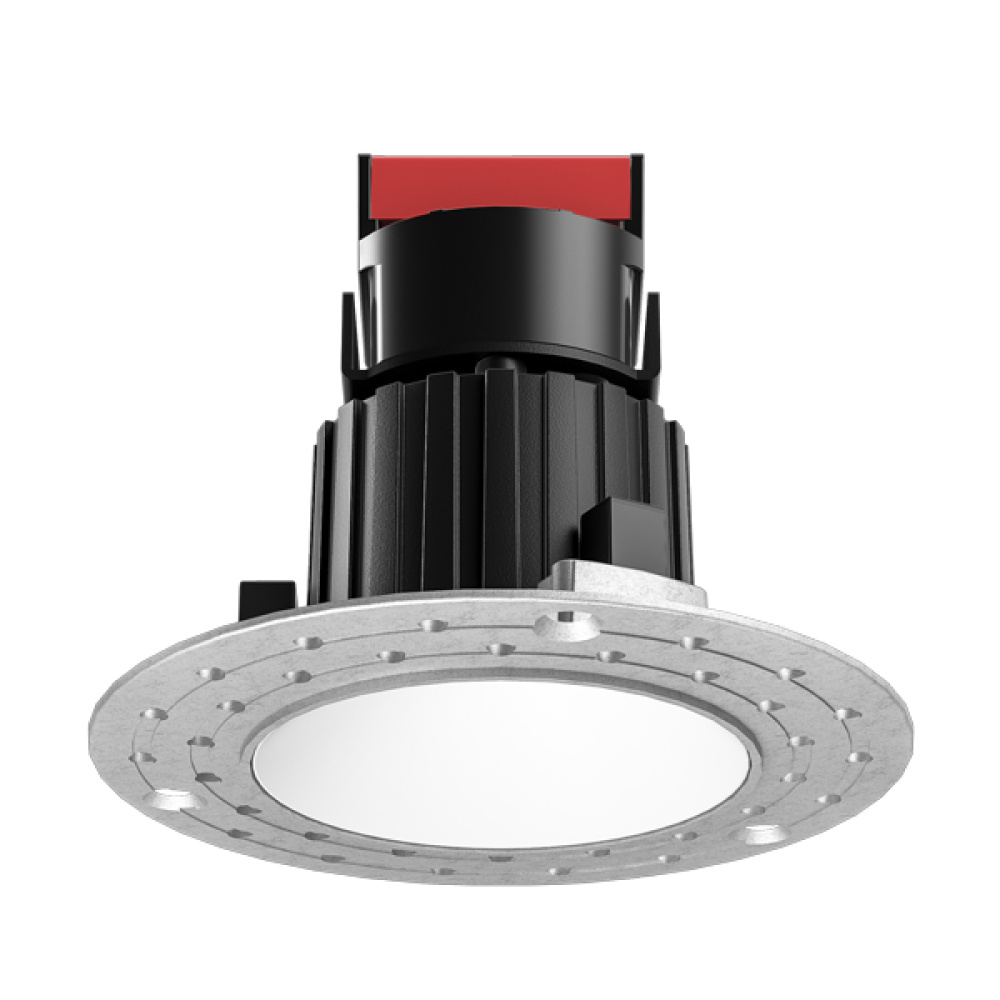

1" RND TRMLSS DWNLT 25° 540LM 27K
115
40
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
Small aperture 12V AC Downlight delivers over 600 lumens. More than a traditional 50W MR16 Halogen Lamp. Requires 12V AC Transformer (daisy chain up to 6). Dimmable ELV, MLV or 0-10V depending on transformer used.
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Additional Information
1 Trimless Round Recessed Oak™ Downlight: 1″ Trimless Light Engine
1 Trimless Spackle Frame, EL01SFR, ordered separately (required)
38° Standard beam with optional 28° and 50°
Daisy chain up to 6 fixtures with E1LDRV60
Height allows for use in ceilings with under 3 depth. Ceiling thickness can be reduced from fixture depth
IC Airtight for use with direct contact to insulation
JA8-2016-E & UL listed
Life Span 50,000 Hours L70
Remodel requires no frame. New construction requires E2LF2 Frame.
Requires 12V AC transformer. Dimmable ELV, MLV or 0-10V depending on transformer used
Wet Location Rated for Indoor and Outdoor Use
Info & Guides
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
Black /vendors/vendorImages black.jpg
Category:
Recessed Lighting
Finish:
Black
Voltage:
12 VAC
Bulb Dimmable:
Yes
Bulb Type:
LED
Kelvin:
2700
Lumens / Light Output:
600
Beam Angle:
28°
Bulb CRI:
93+
JA8:
Yes
Max Wattage:
6.1 W
Safety Rating:
UL Approved
